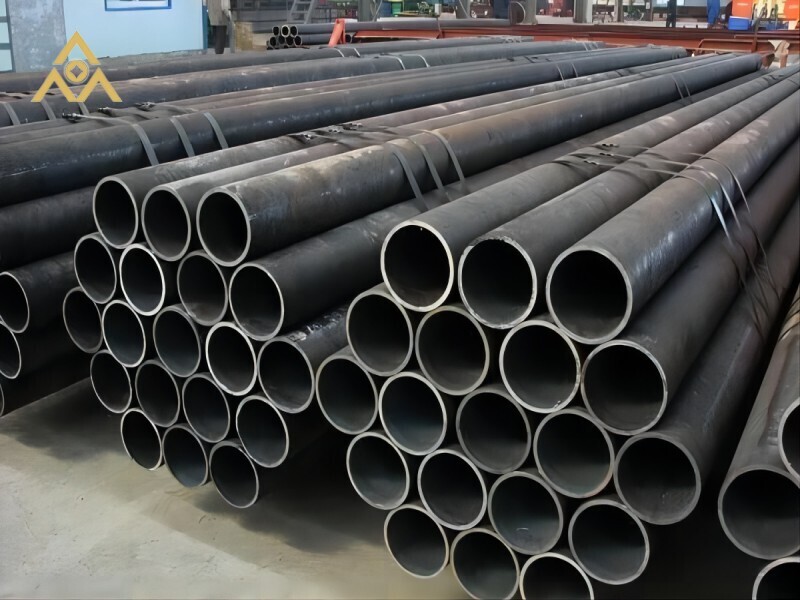

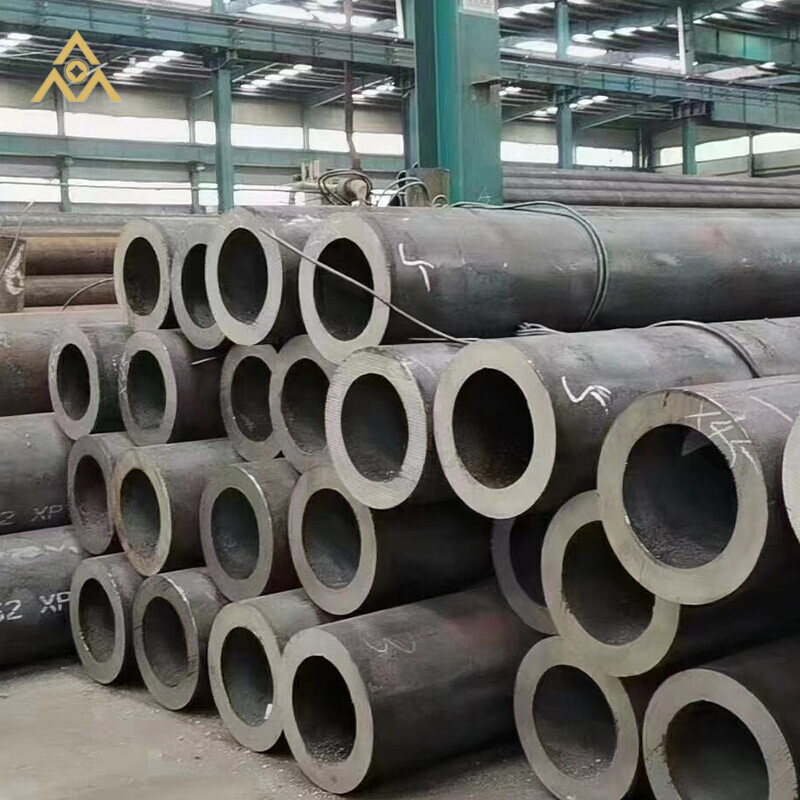

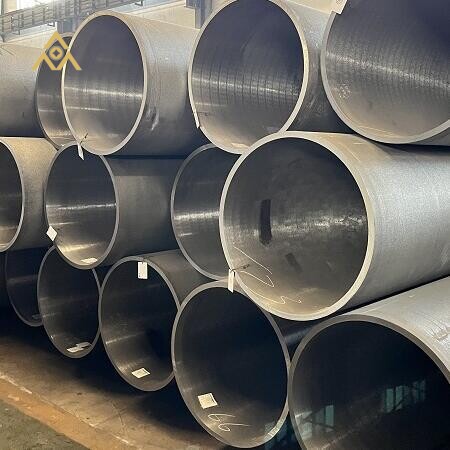

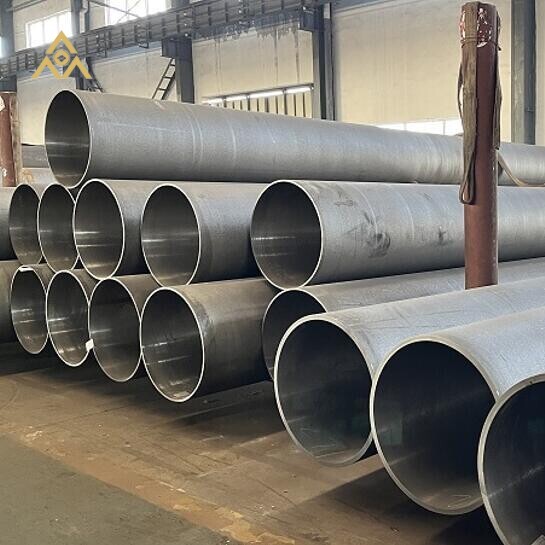

A192 Seamless Carbon Steel Pipe
ASTM A192 is the same as ASME SA-192 and is the standard specification covering seamless carbon steel boiler and superheater tubes of minimum wall thickness for high pressure service.
Classification:Carbon Steel Pipe
+86 15315588389

WhatsApp

Product Parameters

ASTM A192 steel pipe is made of a high pressure seamless carbon steel used in super heaters, water wall panels, heat exchangers, condensers, marine application, refineries, paper pulping, petrochemical applications, pressure vessels, and general engineering applications. It is also used in coal, thermal and oil power generation plants. The A192 carbon steel pipes shall be made by the seamless process and shall be either hot-finished or cold-finished. Hot-finished tubes do not need to be heat treated.


Product Parameters

Product NameA192 Seamless Carbon Steel Pipe
StandardEN/DIN/JIS/ASTM/BS/ASME/AISI etc.
Outer DiameterSeamless: 1/4"-36"Welding: 21.3mm-3620mm
Round Tube: 1/2"-10"Square Tube/Rectangular Tube: 15x15mm-400x600mm
Wall ThicknessSeamless: 1.25mm-50mmWelding: 1.65mm-65mm
Length3-12 meters, Support customization
Surface ProcessBright, Polished, Black
Other ServicesMachining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.



Chemical Composition

C, %Mn, %Si, %P, %S, %
0.06-0.180.27-0.630.25 max0.035 max0.035 max



Mechanical Properties

Tensile Strength MPaYield Strength MPaElongation %Hardness HB, wt≥ 5.1mmHardness HRB, WT< 5.1mm
325 min180 min35 min137 max77 max
